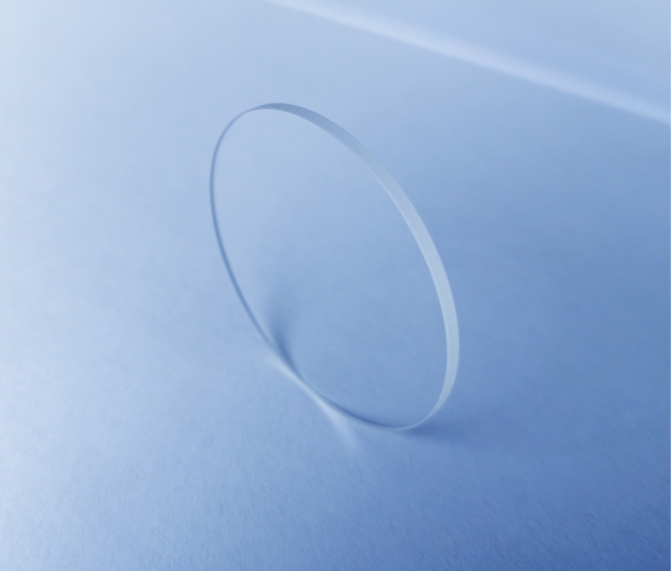

窗口片
材料
N-BK7(H-K9L),熔石英，蓝宝石，氟化镁，氟化钙 锗，硅等光学玻璃材料
| Specification | Normal | Precision |
| Diameter Tolerance | 0.0,-0.2mm | 0.0,-0.005mm |
| Thickness Tolerance | ±0.2mm | ±0.01mm |
| Parallelism | ＜3 arc min | ＜3 arc sec |
| Surface Flatness | λ/4@632.8nm | λ/20@632.8nm |
| Clear Aperture | >90% | >100% |
| Surface Quality | 60-40 S/D | 10-5 S/D |
部分库存信息：
| 图号 | 规格指标 | 厚度(mm) | 面型(λ) | 表面光洁度(S/D) | 镀膜 | |||||
| 0006-B | 24 | 1 | λ/8 | (S/D):10/5 | R<0.25@1064±30nm T>99.5@635nm | |||||
| 20 | 1 | 1/8 λ | (S/D):10/5 | AR | ||||||
| 32 | 10 | 1.53 | 1.000 | (S/D):60-40 | ||||||
| 36 | 1.5 | 1/10 λ | (S/D):80-50 | 长度(mm):35 | ||||||
| 54 | 25.4 | 2 | 4/ λ | (S/D):80-50 | 平行度:＜3分 | |||||
| 54 | 25.4 | 2 | 4/ λ | (S/D):80-50 | 平行度:＜3分 | |||||
| 55 | 10 | 1 | λ/8 | (S/D):60-40 | ||||||
| 57 | 13.9*13. | 91 | (S/D):N/A | |||||||
| 62 | 84.75 | 4.9 | 1/4 λ@633nm | (S/D):40-20 | 单面BBAR | |||||
| 63 | 15 | 0.8 | 830nm | |||||||
| 71 | 10 | 1 | 1/8 λ | (S/D):60-40 | R<0.5% | |||||
| 71 | 10 | 1 | 1/8 λ | (S/D):60-40 | R<0.5% | |||||
| 100 | 10 | 1 | 1/8 λ | (S/D):20-10 | 1064 | |||||
| 0114 R1.0 | 6 | 6 | ||||||||
| 42 | 34.4 | 0.7 | 0度入射/中心波长：908±4nm/FWHM宽带：66±4nm/ 峰值透过率：＞95%/截止波长范围：300-1100nm/ 截止深度：平均OD4/边缘过渡宽带（OD4过渡至50%透过率区域）： ≤35nm | |||||||
| 0112 R1.0 | 4 | 0.4 | (S/D):60-40 | |||||||
| 25 | 1.8 | 1.55 | 3/0.5 | (S/D):60-40 | S1 AR R<0.5% 400-700nm | |||||
| 25 | 1.8 | 1.55 | 3/0.5 | (S/D):60-40 | S1 AR R<0.5% nm | |||||
| 88 | 8 | 2 | ||||||||
| 91 | 4+/-0.03 | 0.6+/-0.05 | ||||||||
| 15 | ∮ 10(0,- | 01±0.05 | 1/8 λ | (S/D):20-10 | R<0.2% @1064±30nm | |||||
| 17 | 12 | 3 | 3(0.2) | (S/D):3*0.16 | R<0.2%,@1080±20nm | |||||
| 38 | 19.99996 | ,2.99974 | 1/10 λ | (S/D):10-5 | ||||||
| 78 | 12.7 | 2 | < λ/8@632.8nm | (S/D):20-10 | ||||||
| 45 | 30 | 5 | Lam/4 | (S/D):20/10 | BBAR/BBAR 900-1100nm R＜0.2% | |||||
| 75 | 1.05 | 1/2 | (S/D):10-5 | |||||||
| 0111 R1.0 | 20 | 4 | (S/D):40-20 | S1、S2面:AR T>99.75%@800-1000nm | ||||||
| 84 | 22.86 | (S/D):20-10 | ||||||||
| 94 | 10 | 1 | 1/8 λ | (S/D):60-40 | 1520-1560R<0.5% | |||||
| SM-WD-0122 | D32 | 1 | ||||||||
了解相关库存产品及报价请点击下方下载PDF查看
库存产品持续更新中
